Handy list of torques and annual maint items
Tailwheel to spring bolt 40 ft lbs
Propeller 3/8" bolts 23-25 ft lbs
Spark Plugs 360 inch lbs
Oil filter housing torque 96 inch lbs
Axle bolt torque 20 ft/lbs.
Caliper back plate torque80 inch lb
Wheel half bolt torque 8 ft-lbs (90 inch lbs)
Future Parts Reference Decker Door Lock RVR#40232
Wheels 6x6 Magnesium (Cleveland 40-28D)
Brake Disk (Cleveland 164-00500)
Brake Calipers (Cleveland 30-19A)
Brake Lining (Cleveland 66-106)
Brackett Air Filter BA-8103-1
Tailwheel tire 280/250 - 4
Mods and improvements history
As purchased had the following equipment:
Spar inspection covers - from Rainbow
Collins TDR-950 Transponder
ACK mode C encoder
King KY92 Comm Radio
Automatic fixed ELT (121.5)
Replaced old fire extinguisher with A344T from H3R. 1.2 lbs
vs 5 lbs.
Removed VOR antenna. Nobody uses VOR.
Replaced 2-point lap belts with 5-point Pacific Scientific
Replaced ancient white plastic stick grips with factory plushy
foam ones and PTT switch in front. Rear PTT installed on left
Installed GT-50 G-meter, OAT and Clock
Installed proper C-4A cockpit lighting

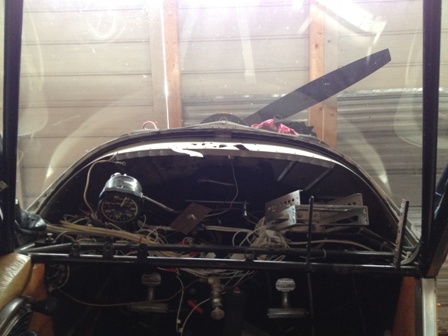

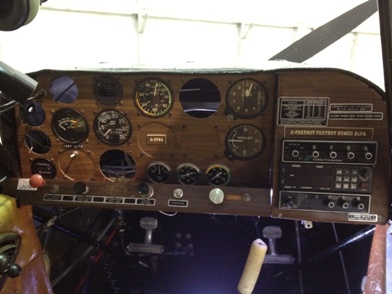

Replaced tall instrument panel with low-profile one, factory new
glareshield and lower lip
Replaced oil temp gauge
Installed new Sigtronics SPA400 intercom. Headset jacks on
switch panel, with extra helicopter jack for pilot.
Replaced 6:00x6 tires with used 8:50x6. New tubes.
Replaced both tailwheel steering springs after one broke on an
Replaced Gill G-35 battery with an Odyssey 680 battery, just
because I happened to have one around and the Gill didn't look or act
healthy. Checked the tag and the Gill had been purchased new in
Purchased PMA parts and drawings from ACA to install Odyssey 680
battery on firewall. Old wiring and battery box removed.

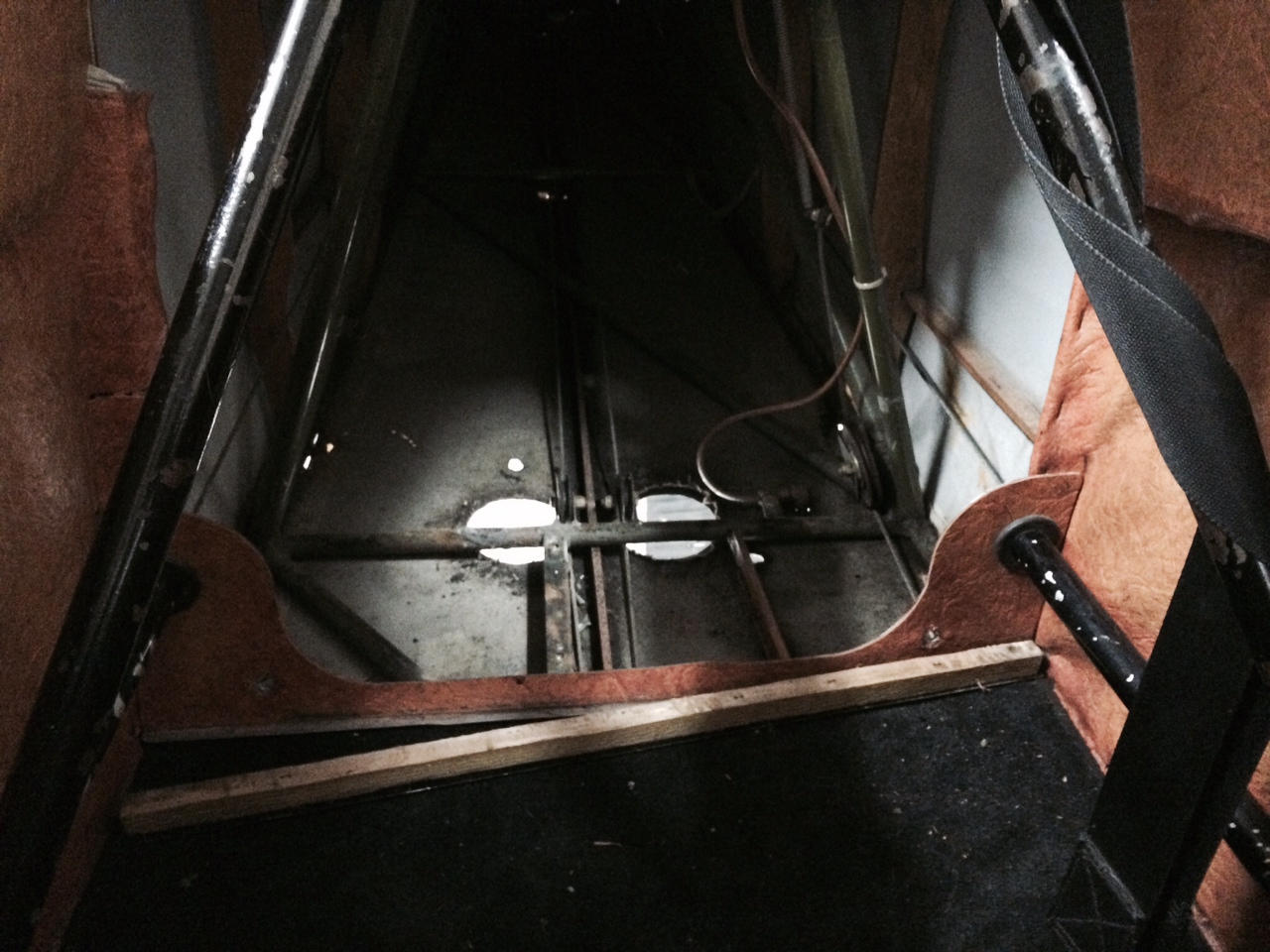

Corrosion cleaned and tubing re-primered.
Completed the ACA
Bulletin 418, Rev "A" electrical system update.
Added a 5 amp breaker to protect the alternator field, and
3 amp breaker for the engine instruments, Hobbs and intercom.
Then a 60 amp and 70 amp breaker under the dash to protect the
main feeds to the ammeter gauge.
Replaced axle nuts with the flush non-wheelpant type. 1 -
Decided to do a clean sheet W&B. Borrowed a real nice
set of electronic scales from the local RAA.

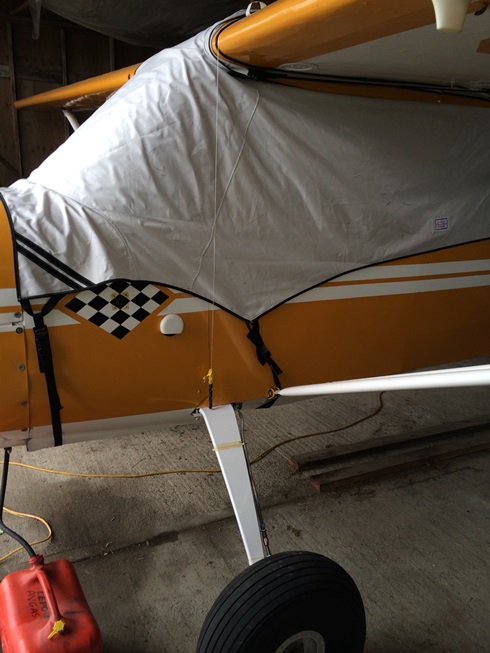

Leveling the aircraft by dropping a string with a plumb bob from the
wingleading edge. Mark on the top of the gear leg is the 10.18"
ahead of the face of the strut fitting that the plumb points to when
level. Also coincides with the upper door jamb being
level. Levelling the aircraft by dropping a string with a plumb
bob from the wingleading edge. Mark on the top of the gear leg
the 10.18" ahead of the face of the strut fitting that the plumb
to when level. Also coincides with the upper door jamb being
Gas jug is doing the fuel draining honors..
Empty weight (with 7 liter oil and 4 liter unusable fuel) is
lbs. 9.57" aft of the LE edge, so a little forward as expected
from moving the battery. With the baggage extension and
lightweight starter it will be perfect..
Went back through all the original documentation and this is the first
time the aircraft has been weighed. All previous W&B, including
original factory delivery, were calculations.

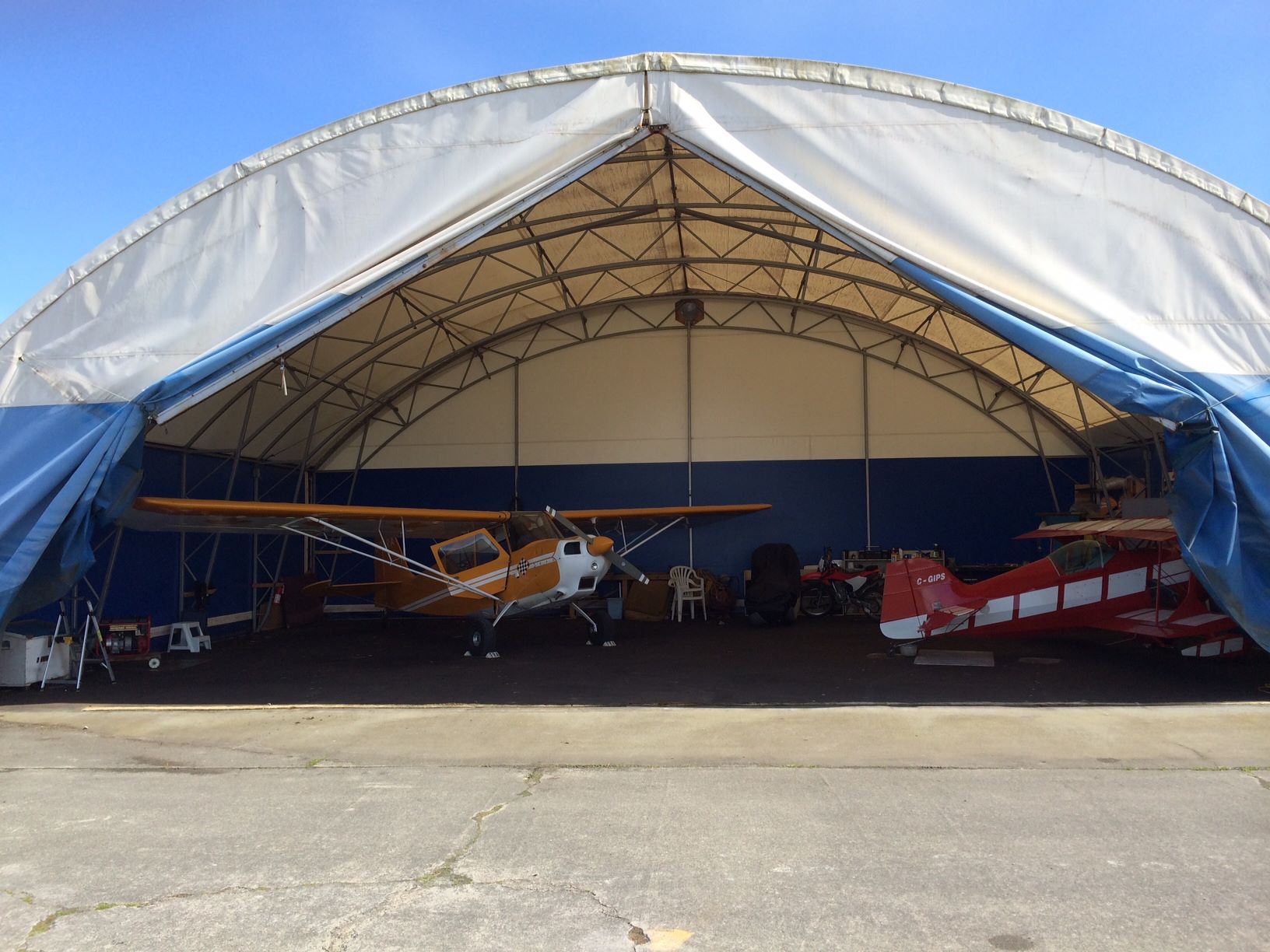

My boys need a house. Moved to a new hangar.
Changed tires to Alaska Bushwheels AirStreaks 26".
Didn't need to shim anything. Brake caliper clears just fine.
Weight is 21 lbs per tire, previous 8:50x6 were 16 lbs plus 3 lbs for
the tube. +2 lbs. Spec is 6-12 psi, I'm running 10 psi

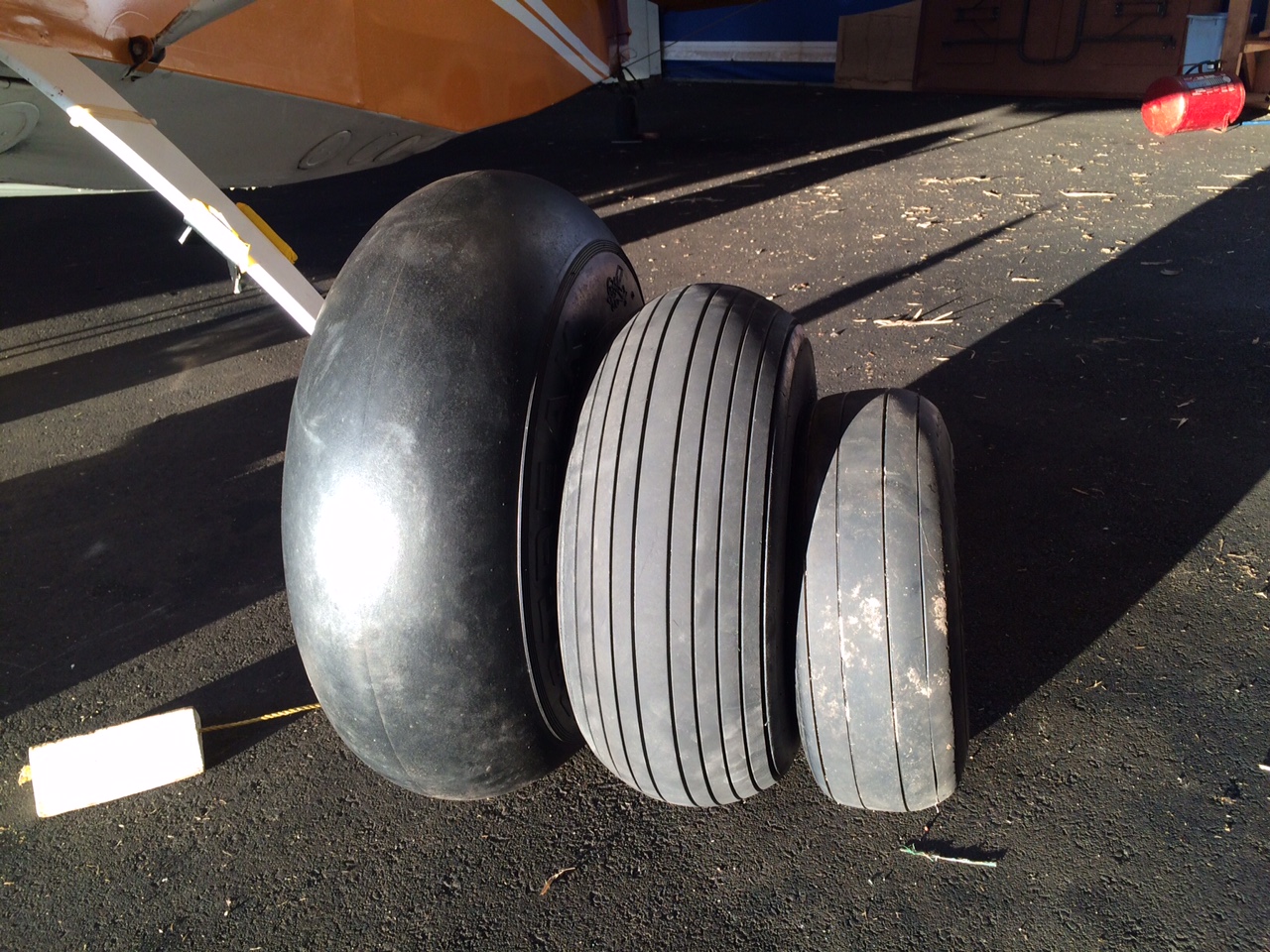

Comparison of the original 6:00x6, the "larger" 8:50x6 I had for
a couple years and the 26" ABW I just installed.
Replaced starter with Sky Tech, listed on the TC 759.
Saggy out-of-spec motor mounts. Replaced with new Lord
J6320-1. In hindsight could have just bought the J-6113-1 ends
without the spacer. Had to jig-drill the engine mount for the
Replaced brake pads. Still good caliper clearance with the ABW.
Lubed the pins with Sil-Glyde, special caliper pin grease used for

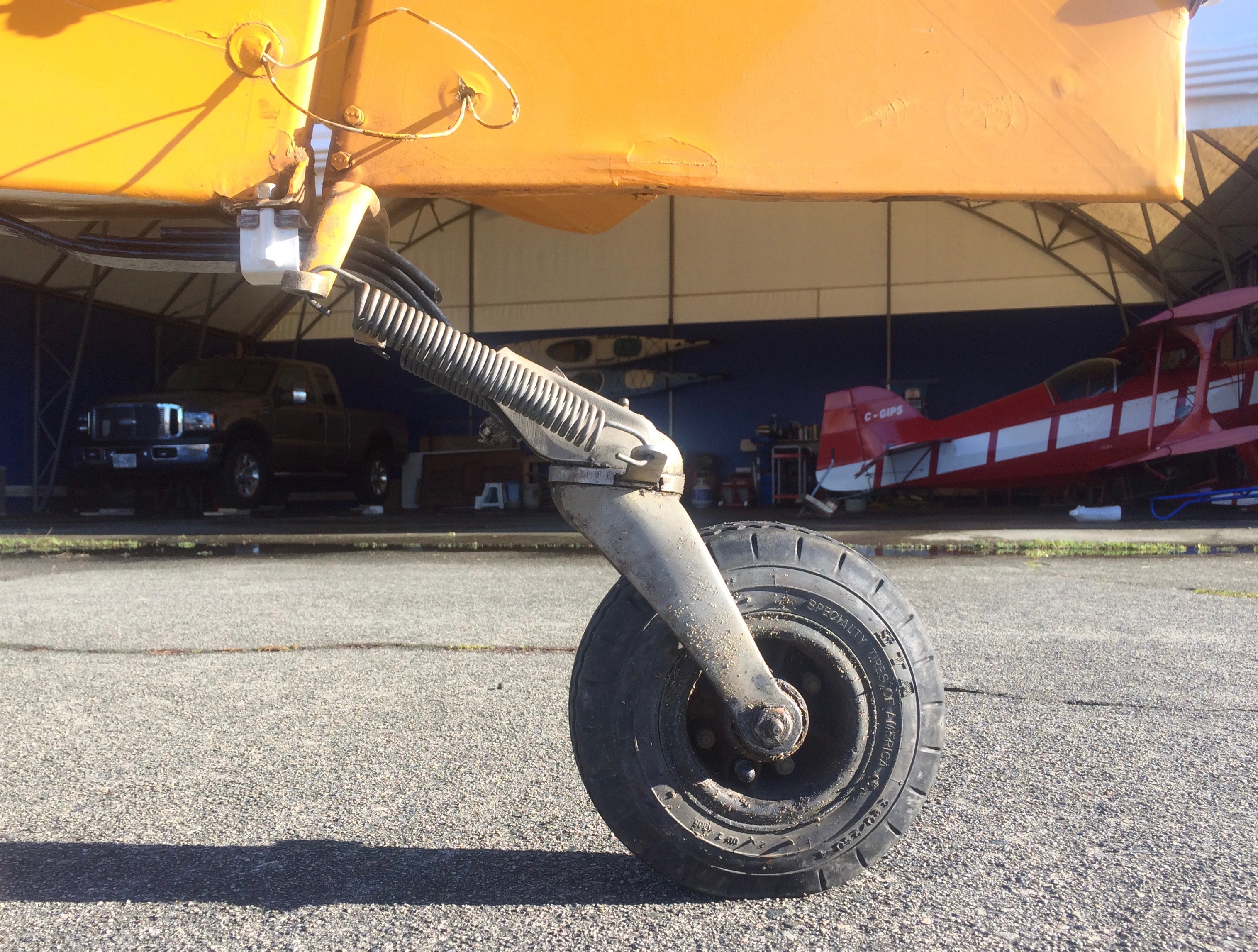

Pulled the tailwheel assembly off (Scott 3200) for a good
cleaning and inspection. How to video
series by Steve Johnson of ABW. Greased with Mobil 28 red
grease. Mounting bolt torque is 40 ft. lbs. Tailwheel tire
pressure 40-45 psi.
Updated weight and balance. Empty is now 1170 lbs at 9.54.

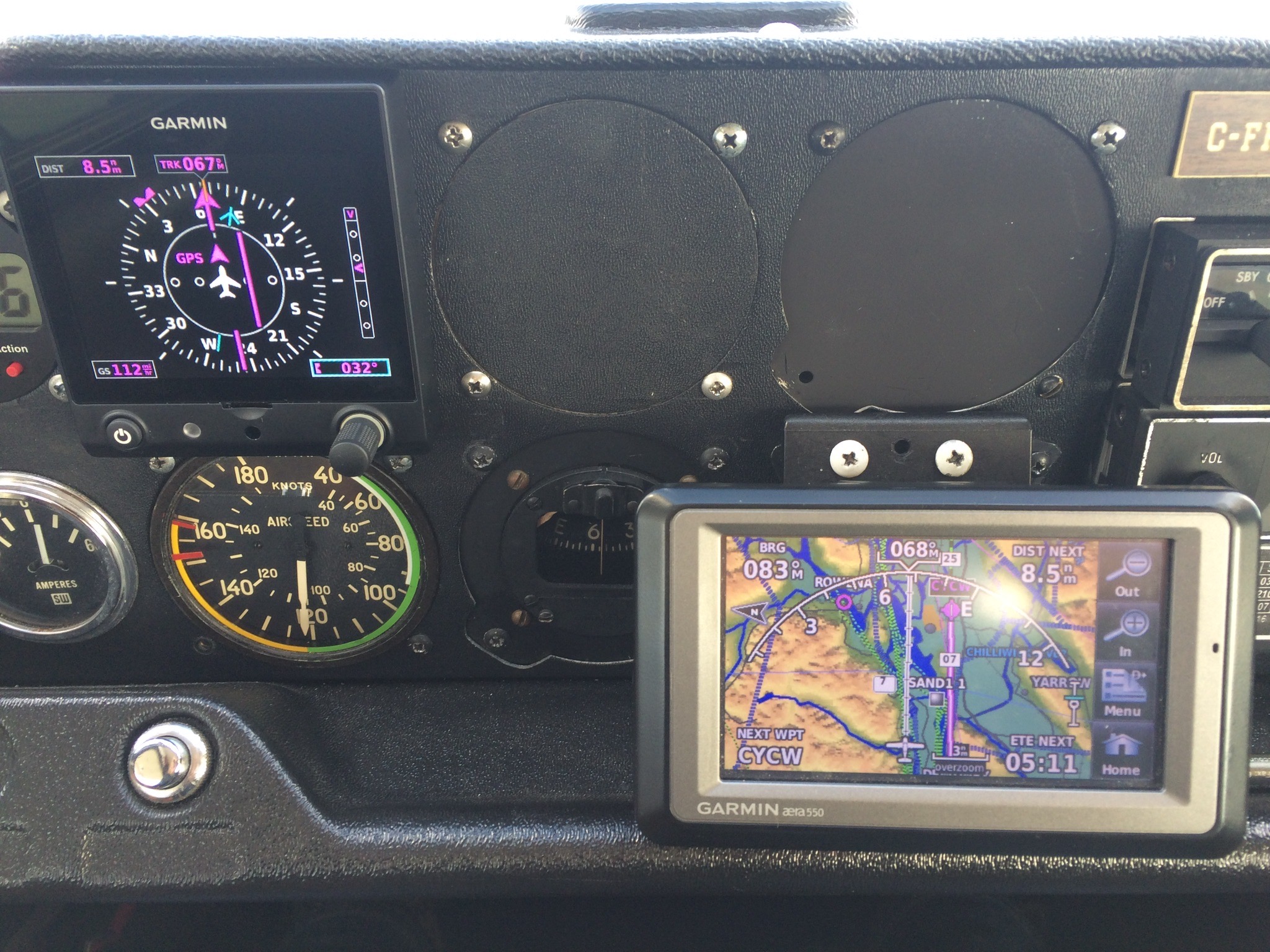

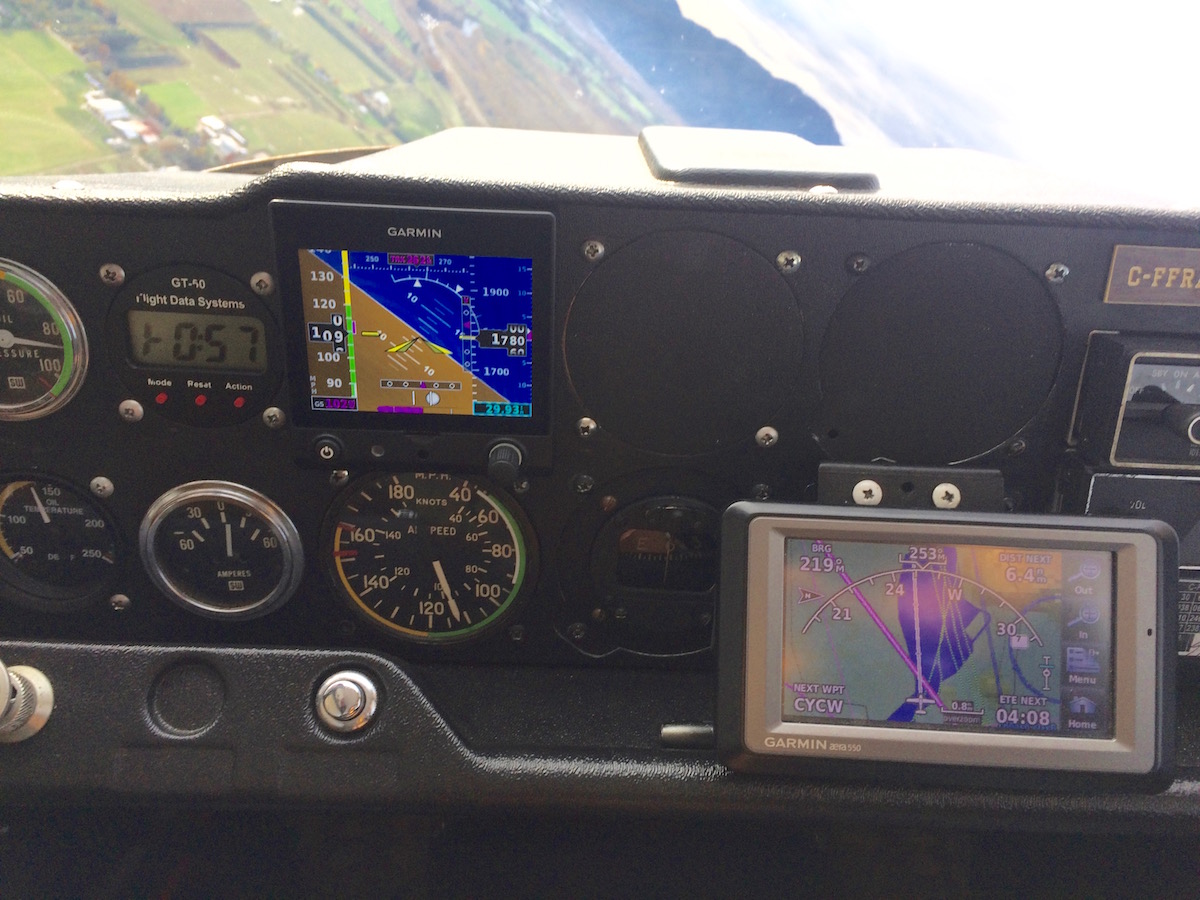

Installed Garmin G5, interfaced with Garmin AERA 550.
HSI mode - NMEA data from 550

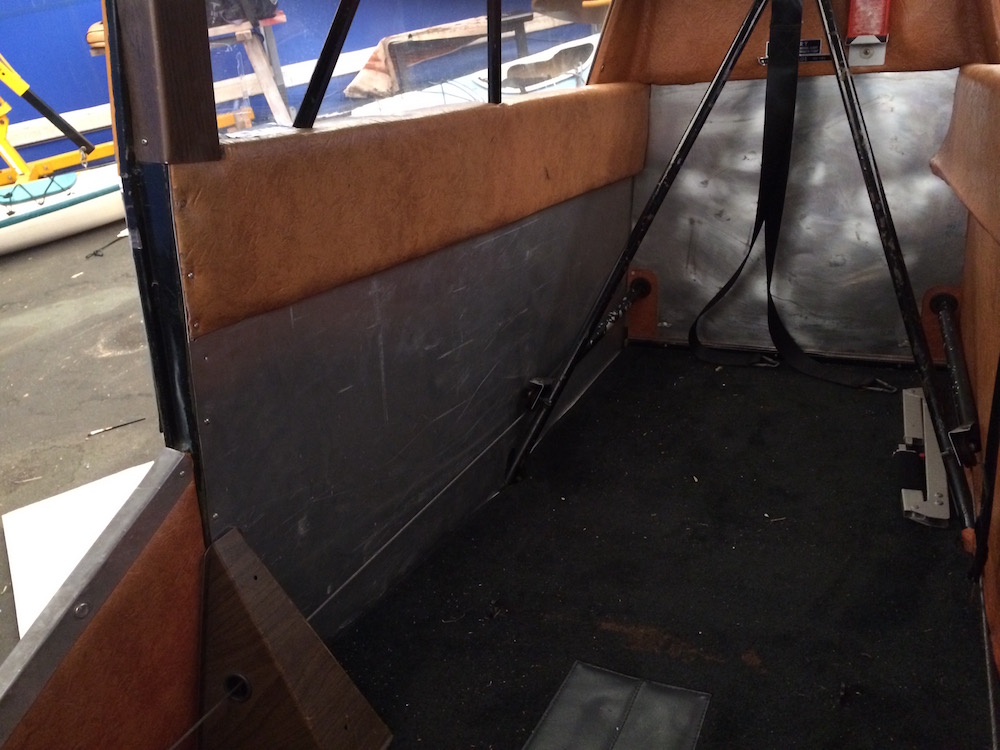

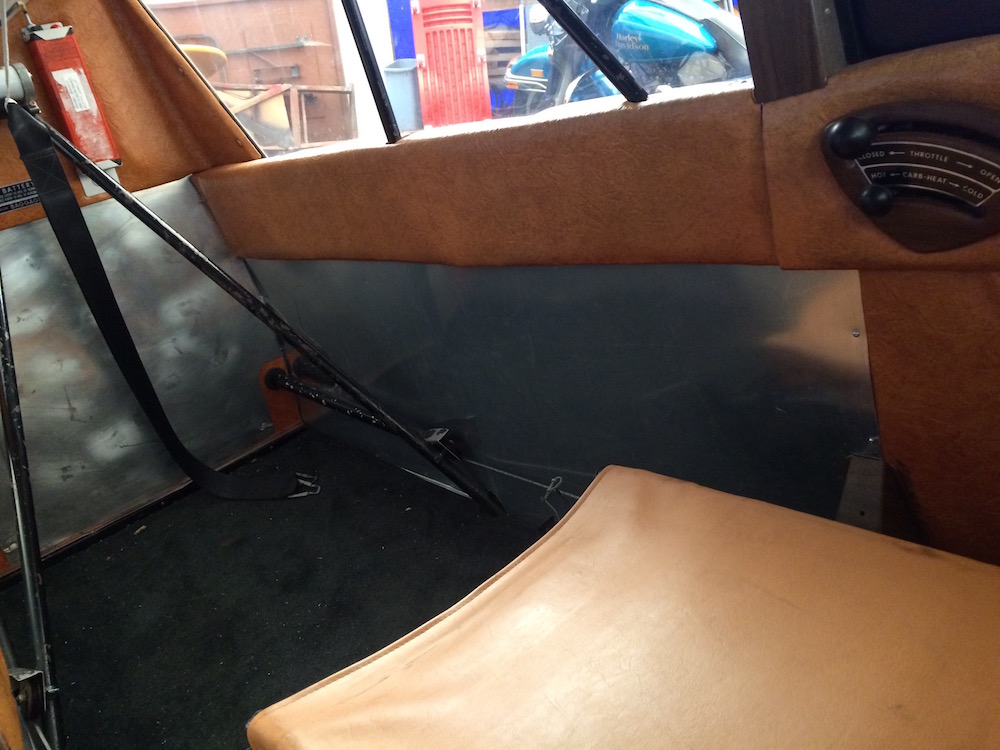

Baggage compartment had failing vinyl interior that was no
longer protecting outside fabric. Redid the right side in
aluminum, just 'cause I had some around. Overkill, left was done
Long winter and thinking about those long summer flights.
Conservative fuel calculations mean extra stops, extra fuel tankered,
lots of landings with 50 litres (over an hour and a half) still in the
tank. Think I'll try one of those new-fangled fuel flows.

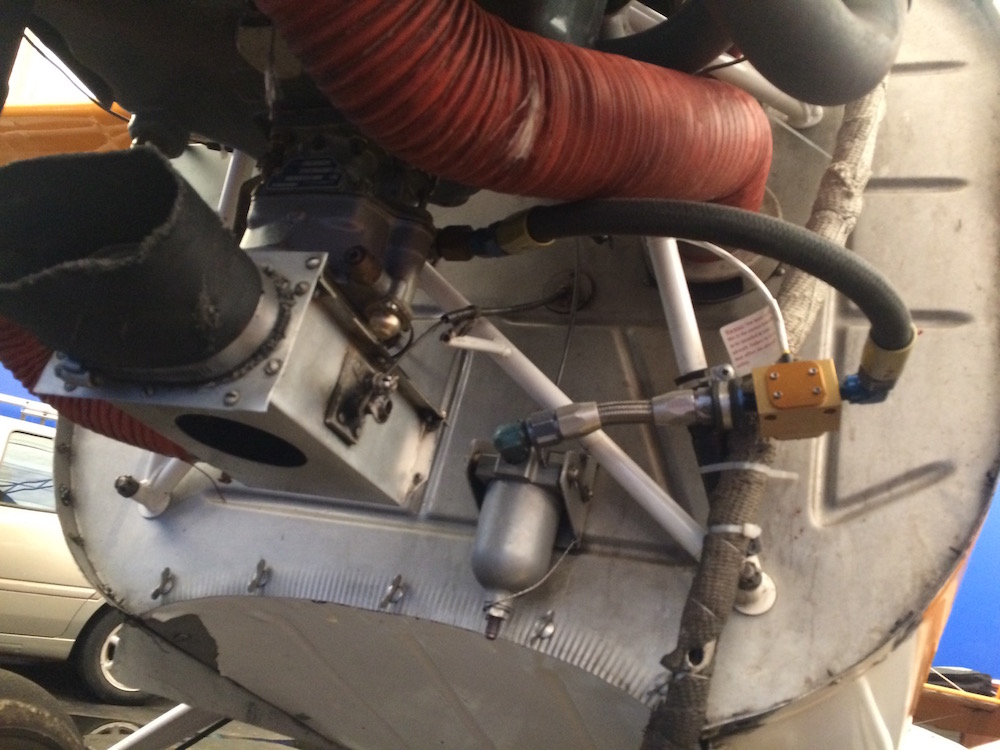

Had one in my Beaver in 1987. Bought the PMA parts (EI FT-90) and
drawings from ACA.
Replaced that ratty looking airfilter/carb
connector at the
same time (and clamp goes on cowling, not carb).
Here's a video of the fuel flow in action. Menu on the left side of the
FC-10 display:, units are litres and nautial miles:
FLOW, fuel flow in litres/hour
USED, litres since powerup
RMNG, fuel remaining
ENDR, endurance in time or distance
REQD, fuel to reach active GPS waypoint
RESV, fuel reserve on reaching active GPS waypoint
EFCY, miles per litre
Updated the KY92 comm radio to a newer KY97A digital
Switched to Exxon 20W50 oil for this winter, installed blanking plate for oil cooler.
Replaced Hobbs Meter with FDS T-30, flight timer, engine timer and tach.

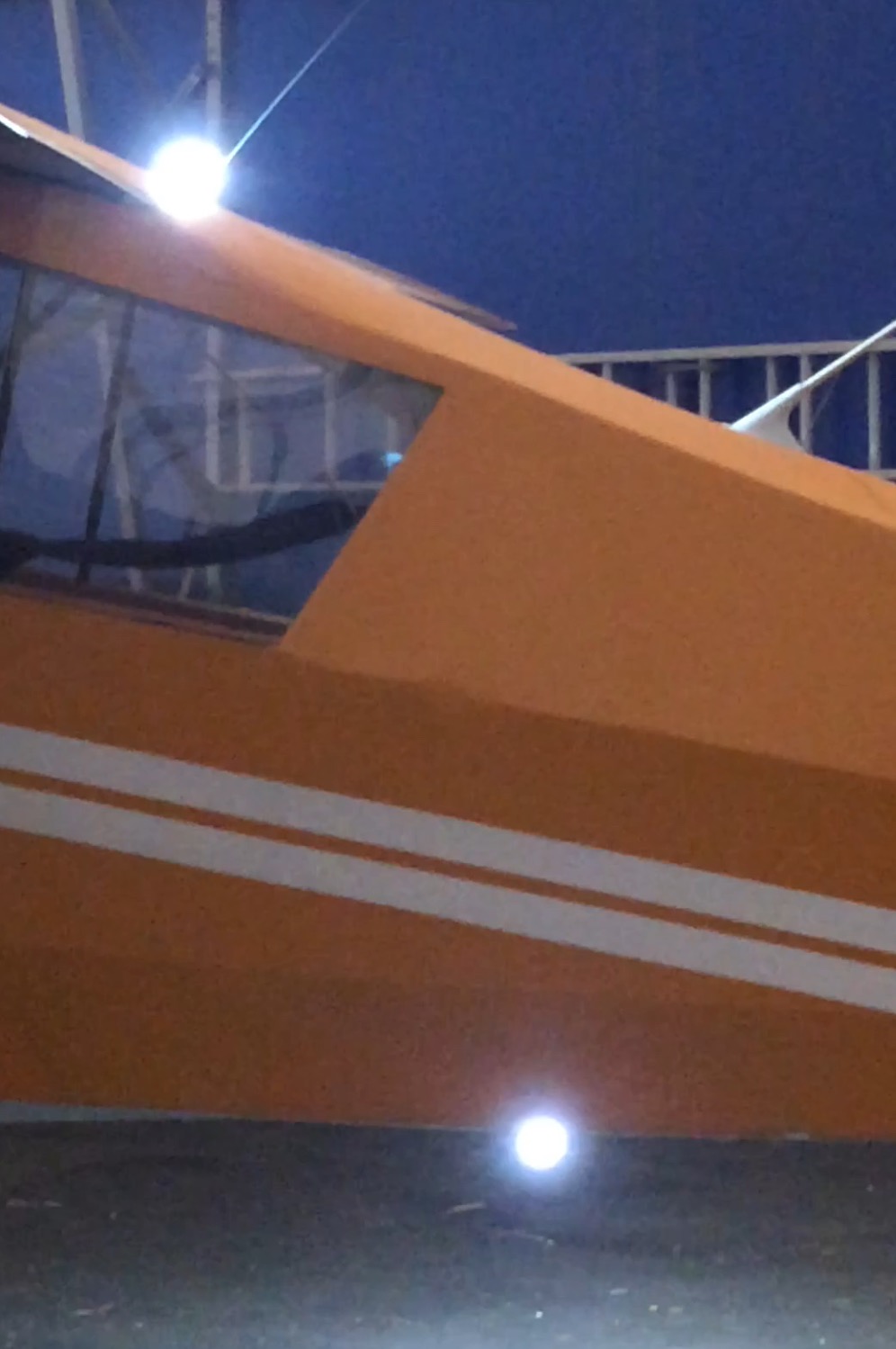

Replaced the ancient Whelen coffee grinder rotating beacon with an LED strobe, actually
two of them, one in the previous beacon location and the second
opposite to it on the belly.
Click on image for video
Finally addressed the tailwheel shimmy. Tailwheel pivot post
inclination was -6 degrees instead of +6. Bought a new fabricka
pad and aluminum shim from ACAto put under the U-collar.
Re-arched the spring somewhat. Over the years that spring
probably gets pounded flatter, now on spec.
